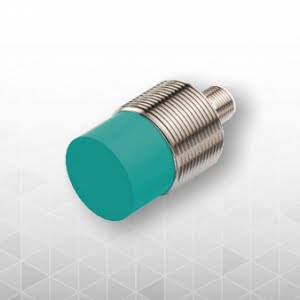

سنسور القایی (Inductive Sensor) شرکت پپرل اند فوکس آلمان جهت تشخیص فلزات در فاصله ۱۵ میلیمتری ساخت Pepperl+Fuchs مدل NBN15-30GM50-E2-V1
مدل سنسور | NBN15-30GM50-E2-V1 |
شرکت سازنده | Pepperl+Fuchs |
فاصله اندازهگیری | ۱۵ میلیمتر |
کشور سازنده | ![]() |
کد کالا | 90001 |
مشخصات فنی
جدول را به چپ و راست حرکت دهید
General specifications | |
Switching function | Normally open (NO) |
Output type | PNP |
Rated operating distance | 15 mm |
Installation | non-flush |
Output polarity | DC |
Assured operating distance | 0 … 12.15 mm ( -25 … 70 °C (-13 … 158 °F) ) 0 … 11.4 mm ( -40 … -25 °C (-40 … -13 °F) ) |
Reduction factor rAl | 0.5 |
Reduction factor rCu | 0.4 |
Reduction factor r304 | 0.8 |
Nominal ratings | |
Operating voltage | 10 … 30 V |
Switching frequency | 0 … 200 Hz |
Hysteresis | typ. 5% |
Reverse polarity protection | reverse polarity protected |
Short-circuit protection | pulsing |
Voltage drop | ≤ 3 V |
Operating current | 0 … 200 mA |
Off-state current | 0 … 0.5 mA typ. 0.1 µA at 25 °C |
No-load supply current | ≤ 20 mA |
Switching state indicator | Multihole-LED, yellow |
Functional safety related parameters | |
MTTFd | 1803 a |
Mission Time (TM) | 20 a |
Diagnostic Coverage (DC) | 0 % |
Approvals and certificates | |
EAC conformity | TR CU 020/2011 |
UL approval | cULus Listed, General Purpose |
CSA approval | cCSAus Listed, General Purpose |
CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions | |
Ambient temperature | -40 … 70 °C (-40 … 158 °F) |
Mechanical specifications | |
Connection type | Connector M12 x 1 , 4-pin |
Housing material | brass, nickel-plated |
Sensing face | PBT |
Housing diameter | 30 mm |
Degree of protection | IP67 |
دانلود
عنوان | زبان | نوع فایل | حجم فایل |
انگلیسی | ۱۹۱ کیلوبایت | ||
انگلیسی | ۱۶۵ کیلوبایت |
